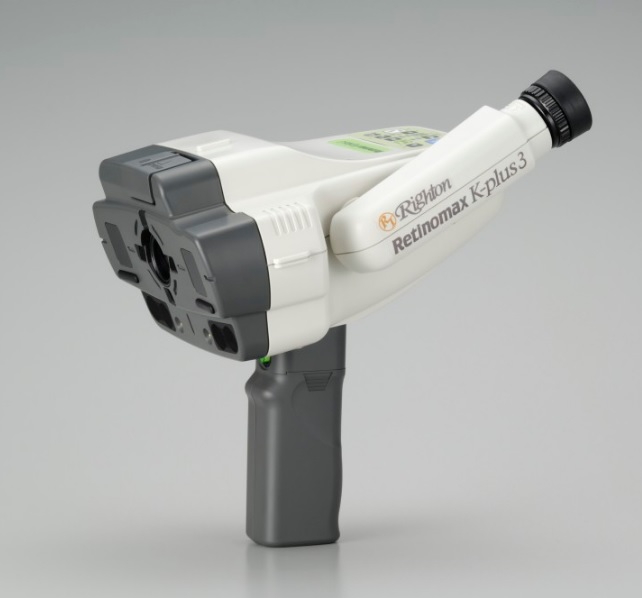

Righton Retinomax K-Plus 3 Auto Refractor/Keratometer

Much lighter and has a thinner grip
Weighing just under one kilogram, the main body with battery is over 17% lighter in the case of the K-plus 3 and 11% lighter in the case of the Retinomax 3 than conventional Retinomax Series models.

Auto Quick measurement
If no measurement is made within six seconds , the unit automatically enters Quick mode. Measurement is then taken in 0.07 second. In Auto Quick mode, “AQ” appears on printouts.

Parallel sensor detects inclination of main body and displays value
Unlike conventional methods, in which operators guess levelness, levelness can be detected digitally with the use of the unit’s parallel sensor. Levelness is displayed on the monitor in every 2° pitch up to ±12°,and every 3°pitch up to ±45°.
(This is only displayed in the standing position. No levelness display appears when the patient is lying down.)

Auto pupil measurement, display and printout
The unit measures pupil size automatically , displays the X (horizontal} size on the monitor, and prints out the XY (horizontal and vertical) sizes separately .These results can be used for reference for checking accommodation, mydriasis, ADIE and Horner-associated syndrome ,etc. The user can choose to print out either all the data or representative values only.

Alignment indicator display
Indicators showing alignment directions are displayed on the monitor to facilitate alignment. The Mire ring makes focusing much easier.

Two memory functions
Data from the last measurement is automatically saved after the Retinomax 3 is turned off. The last patient data can be recalled by pressing the PRINT key. The data can be transferred wirelessly to a printer.

Press the MEMORY key for more than one second to enter Memory Set. Here you can save the data of up to 50 patients (100 eyes) in 10,20,30- and 40-patient steps. Data can also be printed out with Memory Set. For measurements, first press the MEMORY key to enter Memory mode. After each measurement, press PRINT to save individual patient data. This avoids the possibility of single-eye readings being mixed up. In normal readings, numbers are assigned in series. However, in Memory mode,saved datais numbered from “1.”

Up to 50 sets of patient data can be saved or printed out. To delete saved data, select the DELETE ALL on the Memory Set screen.

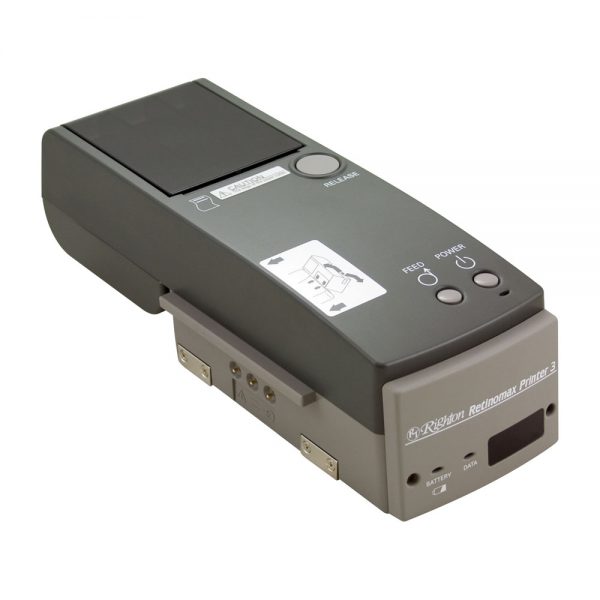

To print out multiple sets of data, use the optional printer cable (main body to printer) to transfer data to the printer.

Achieving long and continuous use
With the adoption of a lithium ion battery, continuous operational time has been extended to approximately 80 minutes. The station has an AC adapter , allowing it to be connected to the main body with a DC cord (optional) to enable extended continuous operation. This facilitates screening, as well as use in an operating room.

Fixation intensity is automat ically lowered for pupils less than 3 mm in size
The minimum pupil measurement size in Auto Quick mode is 2.3 mm. If a pupil is less than 3.0 mm, the f ixation target intensity is automatically reduced by approximately 45% to avoid pupilcontraction. The intensity can also be reduced with the fixation intensity key.

Extended diopter adjustment range
The diopter adjustment range has been extended to ±8D

Accuracy and stability have been improved
Measurement is made five times, and Measurement is made three more times

Quick startup and fast printout
The main body takes only four seconds to start after power is turned on (some 60% faster than conventional models).

Printout time has been reduced by 45%.

Three fixation targets are available.
Specify when ordering : Tulip (for general use), Rocket (may not be suitable for children under 3 years old), Bear (primarily for children).

Retinomax 3 also has retro illumination mode
The Retinomax 3 includes the retro illumination mode for observation of the inside of the pupil. Accordingly, the only major difference between the Retinomax 3 and the Retinomax K-plus 3 is the adoption of kerato functions (including peripheral kerato readings).

Stylish, streamlined designs and bright colors
Check Brochure detail in download section.

Outstanding functionality in keeping with past Retinomax Series models
The angle of the viewfinder can be adjusted within a range of 0° to 135°, making measurement easy regardless of patient ‘s position or posture.

A cylinder axis correction function with a 45° angle facilitates the use of the Retinomax on patients lying down.

• The 50-mm working distance is the same as that of the table-top model.
• The melody function provides a more relaxed atmosphere for children.
• Wireless data transfer from the main body to a printer is possible within a range of 8.7 meters directly and 6 meters. at an angle of 30°.
