Description
With the new automatic tool changer and the ZCL-50A Rotary Axis Unit the MDX-50 can run fully unattended to create highly complex multi sided prototypes and finished parts. With the updated SRP Player Software (included) a novice can be making parts in as little as a few hours. Add some of our exclusive accessories and the Roland MDX-50 is transformed into a PC Board prototype system, an engraver, a jewelry wax carver. The new fully automated Roland MDX-50 allows users of all abilities and budgets the opportunity to make functional parts with incredible quality and mechanical accuracy from a wide range of materials.
Precision Milling on a Wide Range of Materials
The following items are just some of the materials that can be milled with the MDX-50 benchtop CNC mill:
POM
Nylon
Modeling Wax
PVC
Hardwood
Acetal
Mill Fine Details and Smooth Finishes

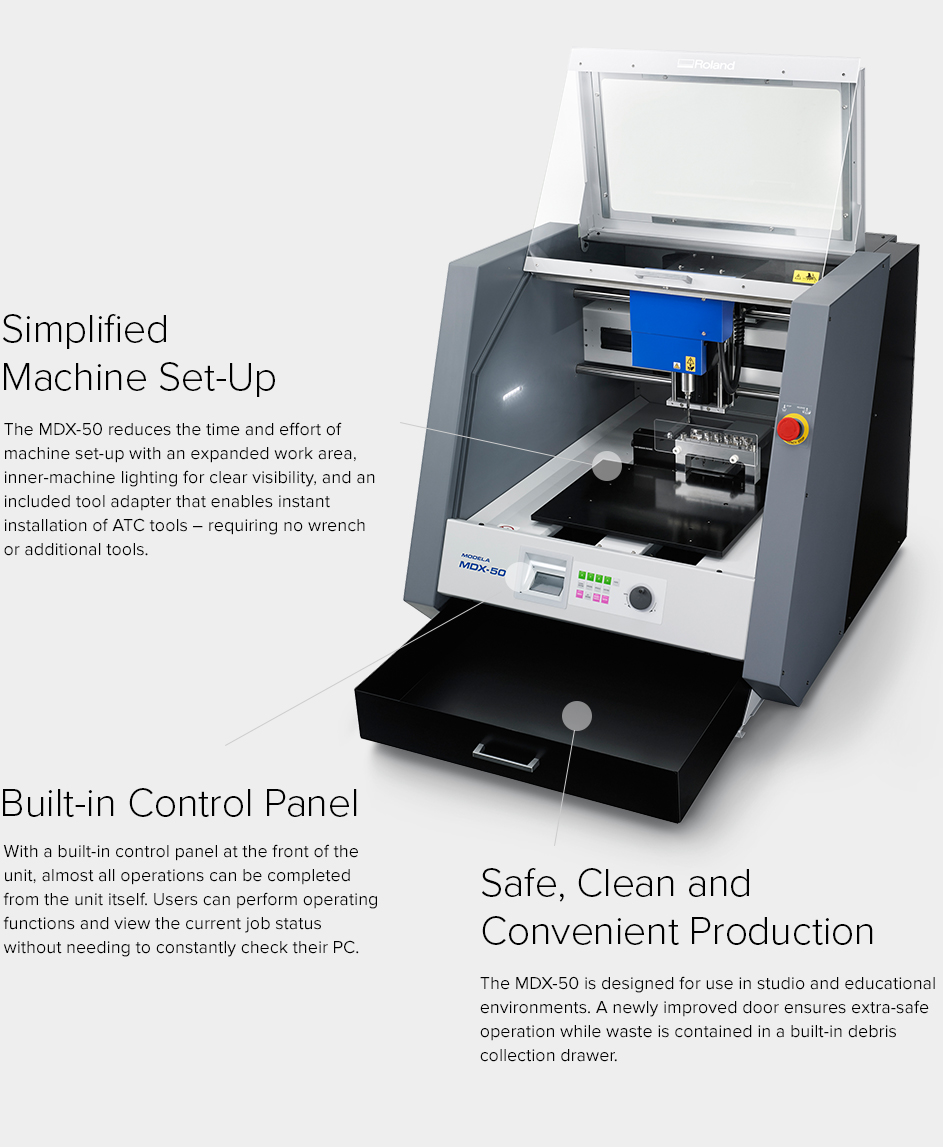

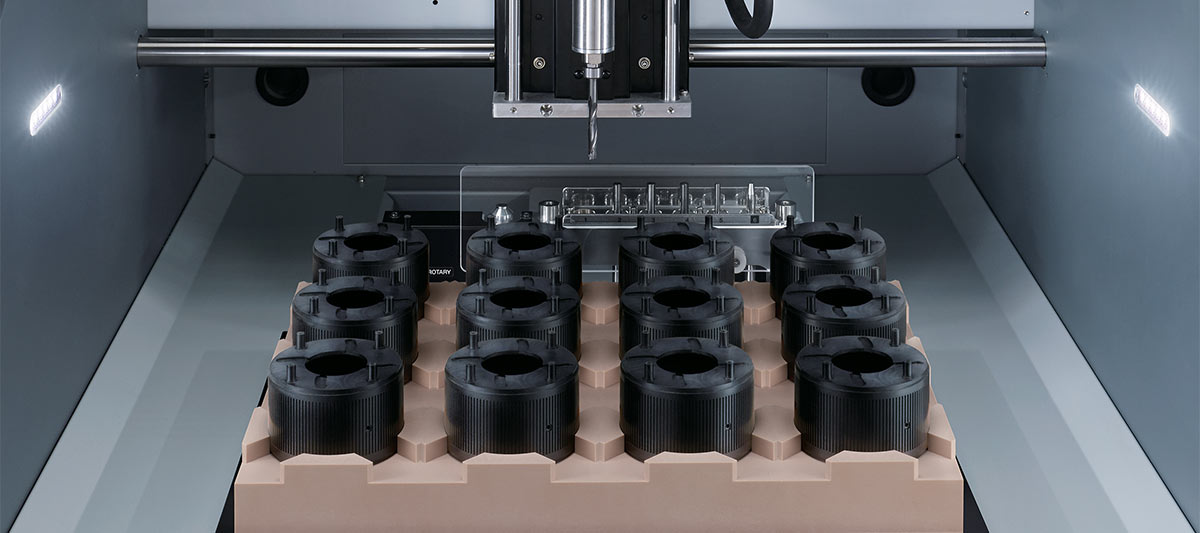

With an improved drive system, machine rigidity and enhanced drive mechanics, the MDX-50 mills incredibly smooth and accurate prototypes for testing structure, function, and assembly with other parts. A machining area of 15.8”(400mm) (X) x 12”(305mm) (Y) x 5.3”(135mm) (Z) supports production of large single objects or batch production of smaller multiple parts.
Free Your Time
The automated features of the MDX-50 enables users to mill with speed and confidence. Combine the 5-station ATC and optional rotary axis unit for the most automated and precise operation:
- Auto-sensing function corrects the tool length to ensure milling accuracy for every job
- Optional rotary axis for effortless production of complex surfaces:
- Includes a wide, self-centering headstock and tailstock workpiece clamps
- Auto-rotates materials from 0-to-360 degrees
- Indexes for 2-sided, 4-sided and custom angles
Included Software for Experts and Beginners

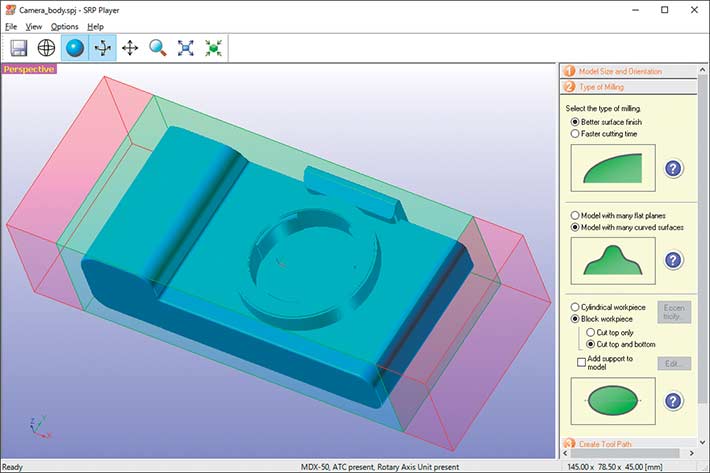

SRP Player CAM
The popular in Industry and Education software has been updated to match the advanced functions of the MDX-50. Milling settings can be configured in five simple steps, making operation straightforward even for those new to milling.
ClickMill
G Code Support

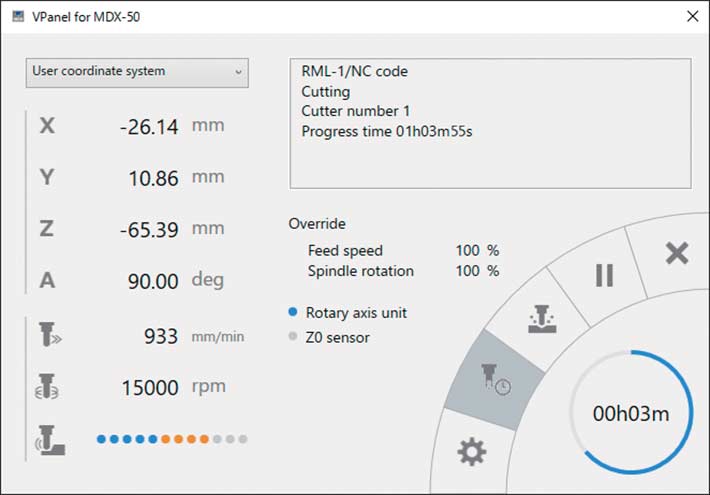

Virtual Control Panel (VPanel)
Superior Reliability and Support
Roland DG’s international ISO certifications are your assurance of our commitment to quality products and service.
