| Cuttable material |
Zirconia, Wax, PMMA, Composite resin, PEEK, Gypsum |
| Loadable workpiece shape |
Disc type (with step) |
Step section: 98.5 mm (diameter), height 10mm
Body section: 95 mm (diameter), height max. 60mm |
| Pin type |
Pin diameter: 6 mm |
| Operating speed |
XYZ axis: |
6 to 1800 mm/min.
(0.24 to 70.9 in./min.) |
| Spindle motor |
Brushless DC motor |
| Spindle speed |
6,000 to 30,000 rpm |
| Rotary axis travel angle |
A axis |
±360° |
| B axis |
±30° |
| Number of burs housed |
10 |
| Attachable bur |
Shank diameter |
4 mm |
| Length |
40 to 55 mm |
| Compatible compressed air |
0.02 to 0.2 MPa |
| Interface |
USB |
| Control command set |
RML-1, NC code |
| Power requirements |
AC 100 to 240 V ± 10%, 50/60 Hz , 2.0 A
(overvoltage category II, IEC 60664-1) |
| Power consumption |
Approx. 200 W |
| Operating noise |
During operation |
70 dB (A) or less (when not cutting) |
| During standby |
45 dB (A) or less |
| External dimensions |
Width x Depth x Height |
495 × 660 × 600 mm
(19.5 × 26.0 × 23.6 in.) |
| Weight |
67 kg (147.7 lbs.) |
| Installation environment |
Indoor use, Altitude |
Up to 2000 m (6,562 ft.) |
| Temperature |
5 to 40 °C (41 to 104 °F) |
| Humidity |
35 to 80% (no condensation) |
| Ambient pollution degree |
2 (as specified by IEC 60664-1) |
| Short-term temporary overvoltage |
1440 V |
| Long-term temporary overvoltage |
490 V |
| Included items |
Power cord, USB cable, Regulator, Air hose, Pin-type material adapter, Automatic correction jig, Detection pin, Torque screwdriver, Milling bur holders, Mounting screws, Hexagonal screwdriver, T-shaped hexagonal screwdriver, Dust collection hoses, Dust collection hose adapter, spanner, Roland Software Package CD, Torque screwdriver, Ferrite core, Manuals |
| System requirements for USB connection |
Operating system |
Windows Vista®, Windows® 7/8/8.1/10 (32 or 64 bit) |
| USB cable |
Use the included USB cable |
| OPTIONS |
| Milling Bur Holder |
Model #ZBH-4D |
Milling bur holder for replacement(for DWX-51D, DWX-50 and DWX-4) |
| Pin-type material adaptor |
Model #ZV-51D |
Pin-type material adaptor for replacement (for DWX-51D) |
| Milling Bur |
Model #ZDB-100D |
R1.0mm milling bur for composite resin |
| Milling Bur |
Model #ZDB-50D |
R0.5mm milling bur for composite resin |
| Milling Bur |
Model #ZDB-30D |
R0.3mm milling bur for composite resin |
| Milling Bur |
Model #ZCB-100D |
R1.0mm milling bur |
| Milling Bur |
Model #ZCB-50D |
R0.5mm milling bur |
| Milling Bur |
Model #ZCB-40D |
R0.4mm milling bur |
madems –

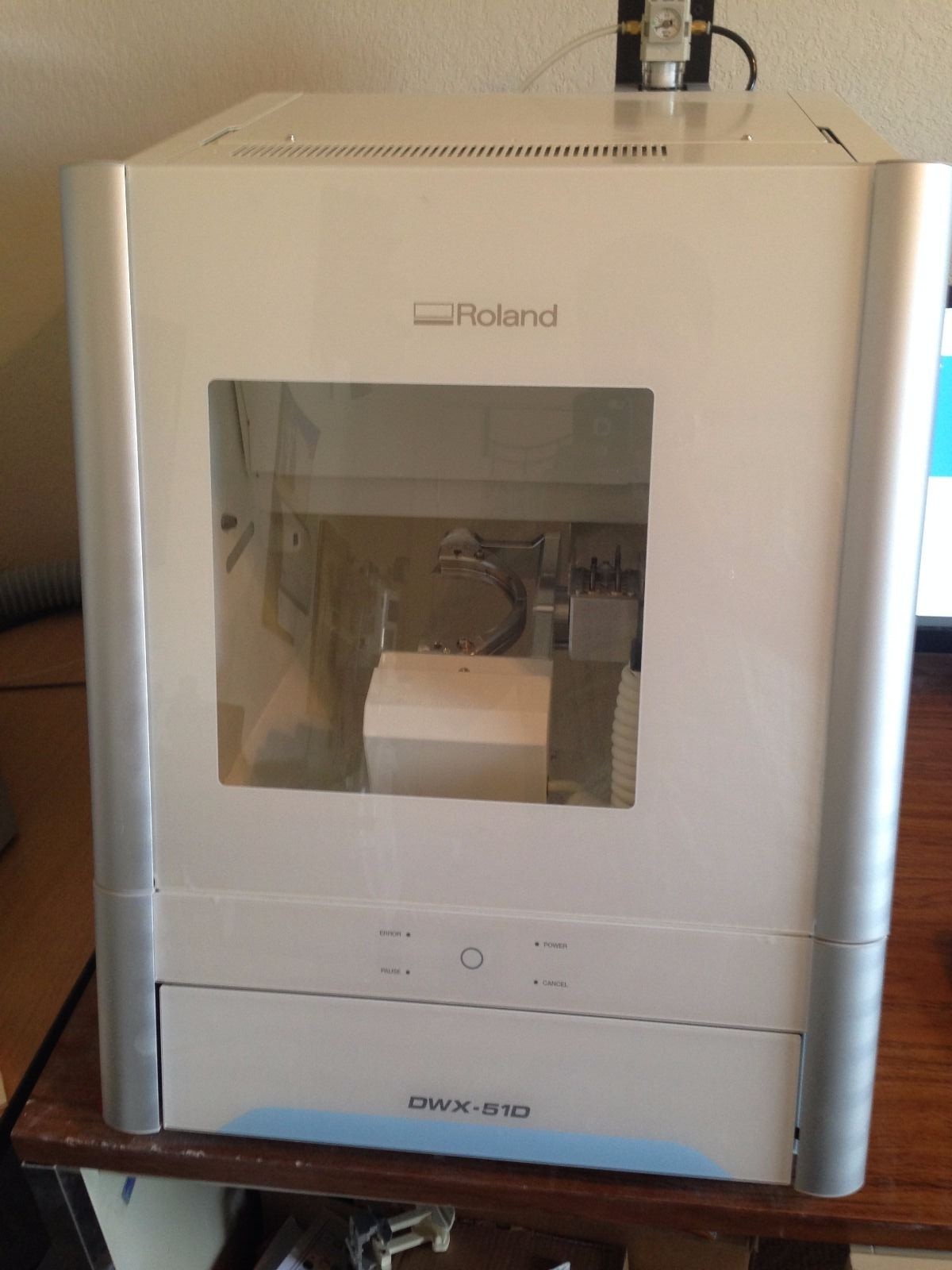

ROLAND DWX-51D DENTAL MILLING UNIT
