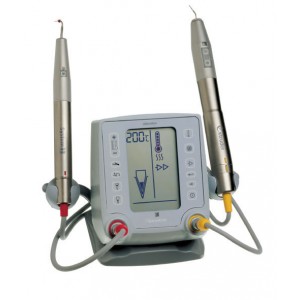

Dental SybronEndo Elements Obturation Unit Gutta Percha Handpieces Extruder From down-pack to backfill, from filling lateral canals to creating post spaces, the Elements Obturation unit puts the Continuous Wave of Condensation technique in one simple-to-operate device. Consistent, reliable results made easy – all from a unit that takes up only 1/3 the space of two separate machines.
| Elements Obturation Unit | |
| Part Numbers | |
| Elements Obturation Cartridges (box of 10) | |
| RealSeal: | |
| Number | Description |
| 972-2001 | Gauge 20 |
| 972-2002 | Gauge 23 |
| Gutta Percha: | |
| Number | Description |
| 972-1001 | Gauge 20 (medium body) |
| 972-1004 | Gauge 20 (heavy body) |
| 972-1002 | Gauge 23 (medium body) |
| 972-1005 | Gauge 23 (heavy body) |
| 972-1003 | Gauge 25 (light body) |
| Autofit Greater Taper Points (box of 50) | |
| RealSeal: | |
| 972-2320 | Assorted Pack (.06/.12 Taper) |
| 972-2311 | 0.04 |
| 972-2312 | 0.06 |
| 972-2313 | 0.08 |
| 972-2314 | 0.1 |
| 972-2315 | .12 (0.98 mm max diameter) |
| 972-2316 | .12L (1.35 mm max diameter) |
| Gutta Percha: | |
| 972-0100 | Assorted Pack (.06/.12) |
| 972-0101 | 0.04 |
| 972-0102 | 0.06 |
| 972-0103 | 0.08 |
| 972-0104 | 0.1 |
| 972-0105 | .12L (1.35 mm max diameter) |
| 972-0107 | .12 (0.98 mm max diameter) |
| RealSeal Kits | |
| 972-2100 | Intro Kit (.04/.06) |
| 972-2102 | 0.02 |
| 972-2103 | 0.04 |
| 972-2104 | 0.06 |
| Elements Obturation Unit Parts | |
| 973-0322 | Obturation Unit |
| 973-0325 | Obturation Unit (without Handpieces) |
| 973-0326 | Extruder Handpiece (with 2 Shields) |
| 973-0327 | System B Handpiece (with 2 Shields) |
| 973-0331 | Extruder Handpiece Shield (pkg of 2) |
| 973-0332 | System B Handpiece Shield (pkg of 2) |
| 973-0333 | Power Supply |
| 973-0334 | AC Power Cord, US |
| 973-0335 | AC Power Cord, Europe |
| 973-0336 | AC Power Cord, UK |
| Elements Buchanan Heat Pluggers | |
| 952-0003 | Set of 5 |
| 952-0031 | .04 (XF) |
| 952-0004 | .06 (F) |
| 952-0005 | .08 (FM) |
| 952-0006 | .10 (M) |
| 952-0007 | .12 (ML) |
| 952-0017 | Elements Obturation Heat Plugger Stand |
| 973-0219 | Hot Pulp Test Tip |
| Elements Buchanan Hand Pluggers | |
| 974-0058 | Size #1 |
| 974-0059 | Size #2 |
| 974-0058 | Size #1 |
| 974-0059 | Size #2 |
Additional Information
The Elements Obturation Unit combines our System B� technology with a motor-driven extruder handpiece to make obturation efficient, predictable, and accurate. From downpack to backfill, the Elements Obturation Unit puts the Continuous Wave of Condensation Technique into one simple-to-operate device that takes up only 1/3 the space of two separate machines.
System B Plugger Maximizes Condensation Force For Complete Fill
Matched Autofit pluggers replicate the canal shape and maximize condensation forces to move fill material and sealer into all areas of the root canal, including lateral canals, which ensures a complete fill.
Features and Benefits
System B
- One-touch controls for downpack, backfill and hot pulp testing
- Each function has preset temperature and duration
- Tip temperature is continuously maintained and displayed
- Time-out feature prevents overheating
- Automatic shut-off precludes using wrong or worn-out tip
- Plugger heats instantly for immediate use
Extruder
- Motorized handpiece eliminates hand fatigue and precludes voids
- Pencil-grip handpiece enhances control and fits standard handpiece holders
- Precise temperature control for consistency
- Extra-long prebent needles offer convenience and unprecedented visibility
- Heats quickly and shuts off automatically
- Handpiece shows remaining material
Handpieces
- Plugger and extruder handpieces are lightweight, strong and durable
- Insulation technology keeps handpieces cool for you and the patient
- Aluminum shields minimize downtime � use one while autoclaving the other
