Description
ADVANCED LIGHTGUIDE
The light guide that encircles the BLK2GO is simple, intuitive and communicative to users of all skill levels. It provides user guidance while scanning and communicates the device status and data quality.
Leica BLK2GO Specifications
| DESIGN & PHYSICAL | |
| Housing | Black anodized aluminium |
| Dimensions | Height: 279 mm / Diameter: 80 mm |
| Weight | 650 g (775 g including battery) |

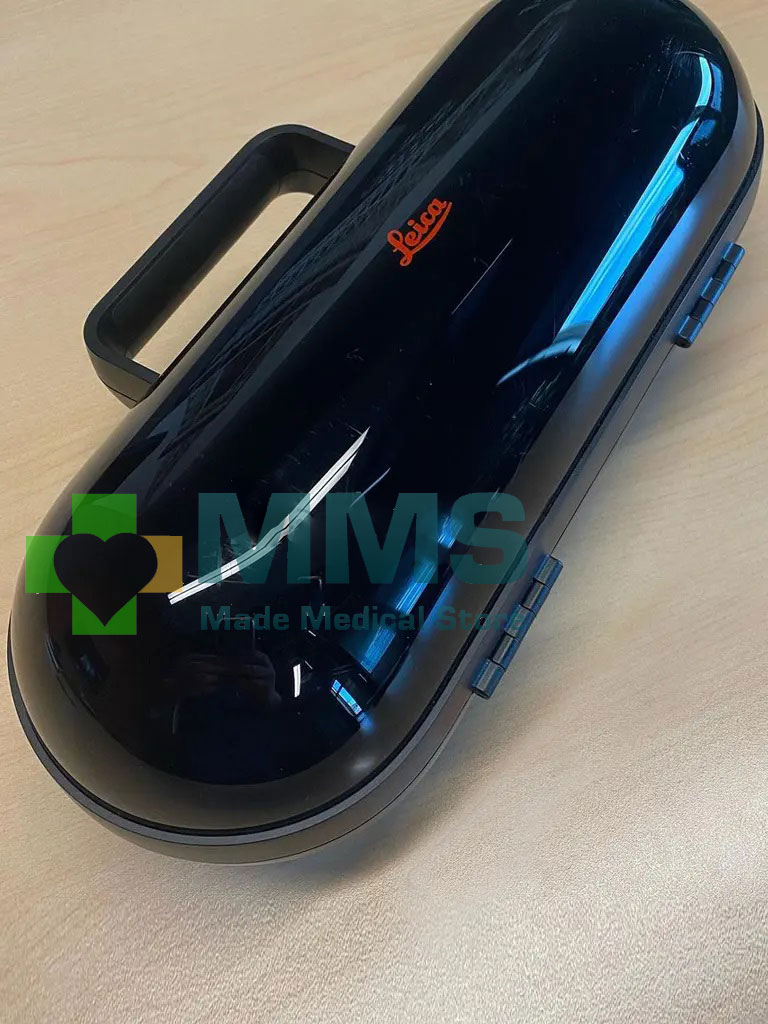

| Transport cover | BLK2GO transportation case |
OPERATION |
|
| Stand-alone operation | One-button operation |
| Mobile device | BLK2GO Live app for iOS and Android including: live 2D and 3D while scanning, device status and data management.iOS 12.1 or higher recommended devices: iPhone series 8, X, 11, 12 Android 9 or higher. Recommended devices: Samsung Galaxy series S10, S20, S21 |
| Communication | Wireless (app connection) |
| Internal memory | 24 hours of scanning (compressed data) / 6 hours (uncompressed data) |
| Battery | Exchangeable, rechargeable Li-Ion battery (Leica GEB821) 45-50 minutes |
LiDAR & IMAGING |
|
Laser class |
1 (in accordance with IEC 60825-1) |
Wavelength |
830 nm |
Field of view |
360° (horizontal) / 270° (vertical) |
Range |
Min. 0.5 – up to 25 m |
Point measurement rate |
420,000 pts/sec |
High resolution camera |
12 Mpixel, 90° x 120°, rolling shutter |
Panoramic vision system |
3-camera system, 4.8 Mpixel 300° x 135°, global shutter |
SYSTEM PERFORMANCE
|
|
Range noise * ** |
+/-3 mm |
Accuracy indoor *** |
+/-10 mm |
ENVIRONMENTAL |
|
Robustness |
Designed for indoor and outdoor use |
Operating temperature |
0 to +40 °C |
Dust & humidity protection |
IP54 (IEC 60529) |
DATA PROCESSING |
|
Data transfer |
Wireless and USB 3.0 |
Desktop software |
Leica Cyclone REGISTER 360 and Cyclone REGISTER 360 (BLK Edition) |
