FARO Freestyle 2 Handheld Laser Scanner

Description

Do you already have scan results created with FARO Focus laser scanner and you want to add detailed information you cannot capture with the terrestrial Focus scammer in hard to reach or narrow areas? Or are you looking for a portable device enabling you to completely capture a complex object or a crime scene in the shortest possible time? Simply rent FARO Freestyle 2 from us at a reasonable price.

With FARO Freestyle 2, you can capture almost any surface type in color and document it three-dimensionally.

Principle

To document in 3D, simply point the hand-operated scanner Freestyle 2 to objects and surroundings from different angles.

Content of rental offer

• 3D scanner with high-end Android smartphone

Product characteristics

• Range: 0.4 – 5m (up to 10m with limited data quality)
• Identifiable feature: up to 0.2mm
• 3D point accuracy: = 0.5mm
• Long range accuracy:
  • 0.5mm at 1m distance
  • 5mm at 5m distance
  • 15mm at 10m distance
• Single image point density:
  • Up to 45,000 points/m² in 0.5m distance
  • Up to 10,500 points/m² in 1m distance
• Acquisition Rate: Up to 220,000 points/s, point cloud density increases with time
• Typical Noise:
  • 0.3mm @ 0.4m distance
  • 0.75mm @ 1m distance
  • 10mm @ 3m distance
  • 35mm @ 5m distance
  • 100mm @ 10m distance
• Lighting conditions: Full daylight, 10,000-45,000 lux (reduced performance in direct sunlight)
• Light source: Integrated LED flash
• Scan volume: 39.5m³ @ max range 5m
• Typical field of view (HxW)
  • 420mm x 550mm @ 0.5m
  • 930mm x 1170mm @ 1m
  • 1800mm x 2160mm @ 2m
  • 2740mm x 3160mm @ 3m
  • 3600mm x 4160mm @ 4m
  • 4470mm x 5150mm @ 5m
• Exposure time: 0.1ms – 7ms (autoexposure)
• Texture color: 24 bit
• Dimensions: 285mm x 256mm x 130mm
• Connectivity: HDMI, USB 3.0, WiFi
• Weight: 1.48kg
• IP rating: IP 52
• Compensation: Onsite – with supplied compensation plate
• Operating temperature range: 0 – 40 °C
• Operating humidity range: Non-condensing
• Eye Safety: Class 1 Laser
• Wavelength: 798 – 816nm
• Data sheet

Mobile PC Specifications

• Microsoft Windows 10 Pro, 64-Bit Intel^® Core^™ i7
• 256GB hard disc with 16 GB RAM
• HDMI; USB 3.0 ports; WiFi

Field of application

• Architecture, Engineering & Construction (AEC)
• Facility management
• Documentation of interior
• Restoration & conservation
• Virtual Reality
• Oil & gas
• Forensics & law enforcement
• Accident reconstruction

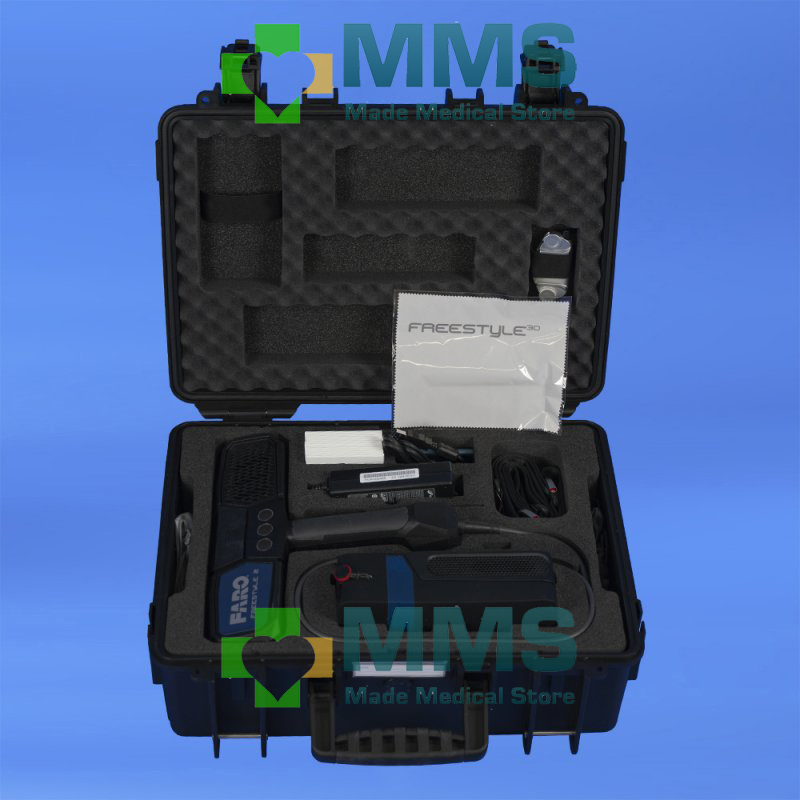

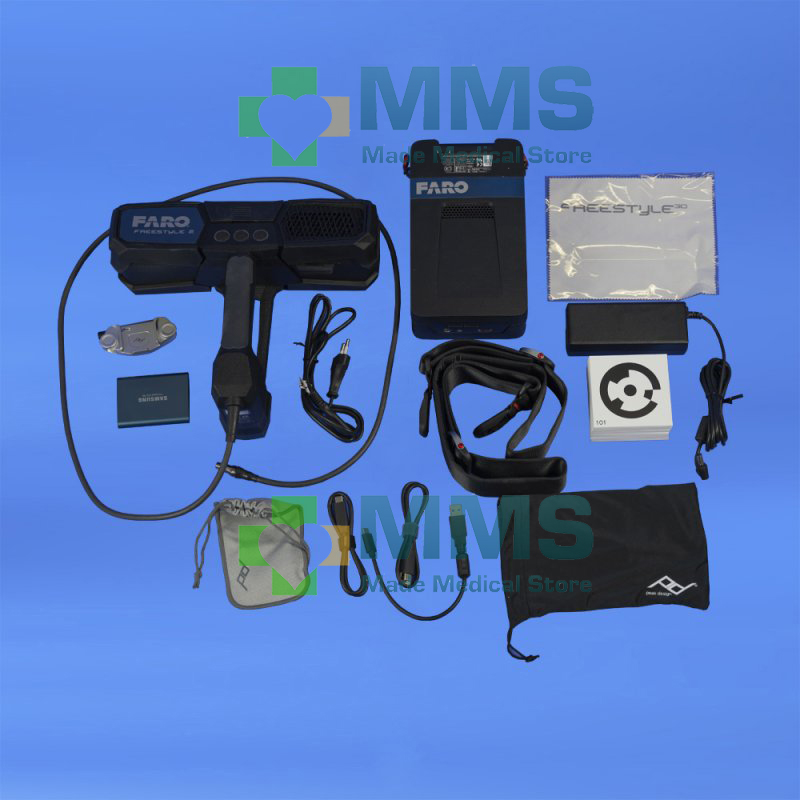

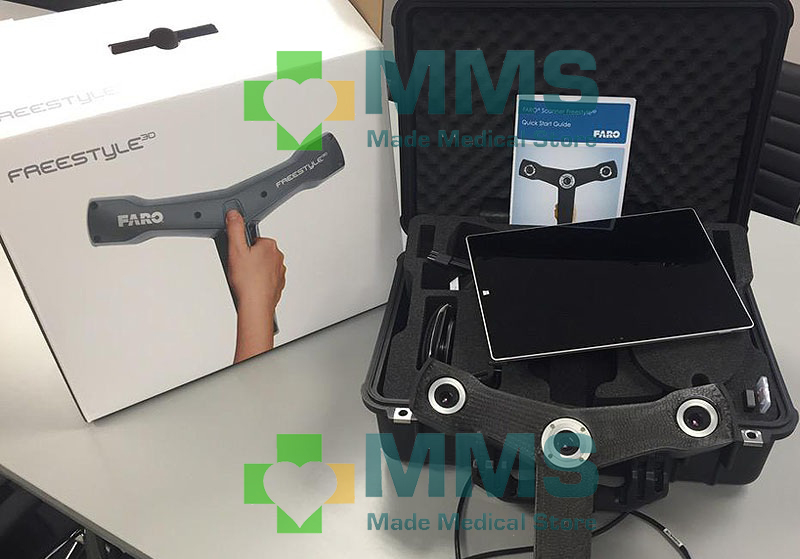

Package :

• FARO Freestyle 2 sensor
• Mobile PC
• Belt and shoulder strap
• Onsite calibration plate
• Magnet kit for smartphone
• USB cable
• 1 battery
• Charger
• Hightspeed USB stick
• Targets kit
• Cleaning kit
• Quick guide
• Rugged case
• Android smartphone
