The KAIZER line is the next generation to follow the Huvitz Excelon series and is designed with a wide array of features intended to simplify and perfect in-house lens finishing.

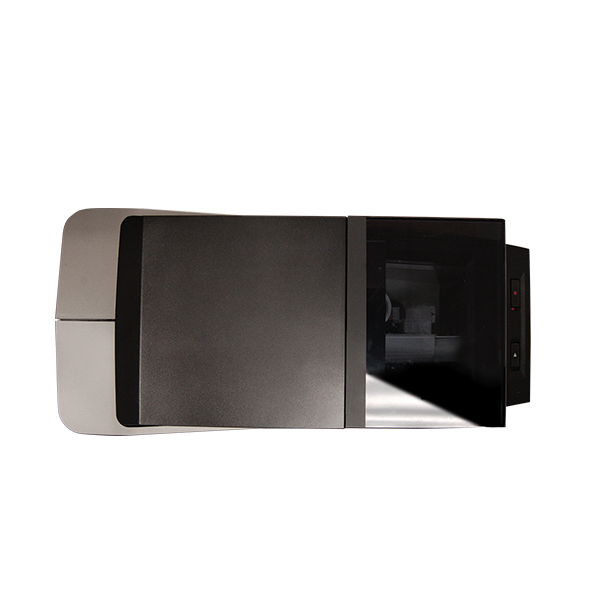

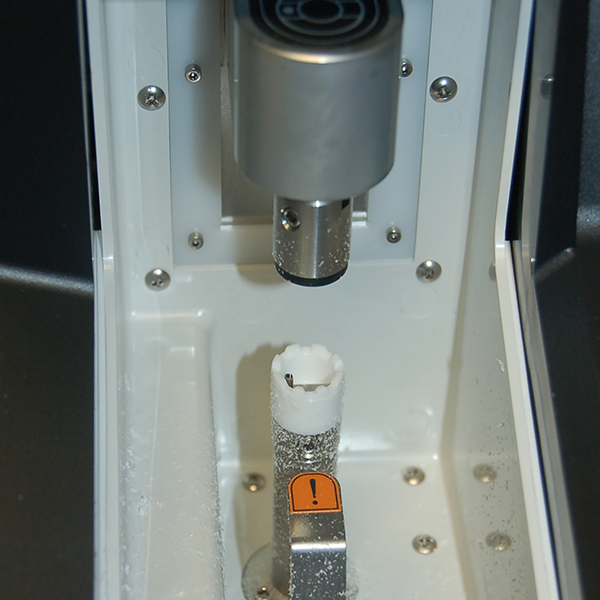

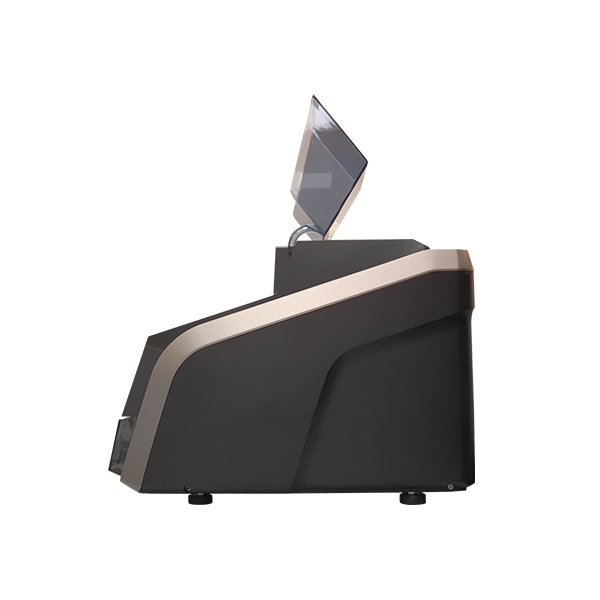

The HDM-8000 Drilling Unit offers the ultimate time saving solution to increase your profitability. You can transmit jobs with a single click. Create the wildest lens shape imaginable. Virtually any shape lens and hole pattern is attainable. The HDM-8000 also features a sleek design and a small footprint that can fit beautifully in any space.
Hole Type | Hole, Slot, Notch |
Hole Size | ø0.04~0.4in (ø1.00~10.00mm) |
Frame Material | Metal, Hard Plastic, Soft Plastic |
Tilting Scope | Automatic, Manual (0~30°) |
Hole Depth | Max 0.24in/6.0mm (0.0mm = Through Hole) |
Slot Width | 0.04in ~ 0.16in (1.00mm ~ 4.00mm) |
Slot lenght | Max 0.8in / 20.00mm |
Dimension / Weight | 7.6(W) x 19(D) x 13.5(H)in / 30.8lb (193(W) x 483(D) x 342(H)mm / 14kg) |
Power Supply | 100 – 240V, 50 / 60Hz |
Power Consumption | 100W |
