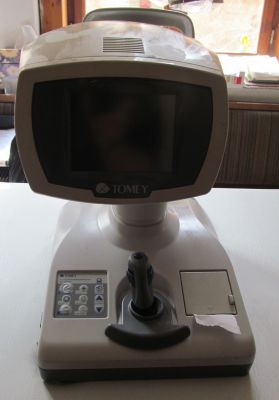

Tomey RC-5000 Auto Refractor Keratometer

Highly Accurate
Simple to Use
Touch Screen Display
Fully Automatic Alignment and Auto Focus
Diameter Measurement of Cornea and Pupil
Power Joystick and Chin Rest
High Speed Printer
List of Recommended Contact Lenses

Highly accurate measurement combined with short examination time and ease of use makes working with the RC-5000 bot professional and quick. The advanced touch-screen display allow you to perform both refraction and keratometry automatically with one simple movement. Capture one eye on the display and the RC-5000 will do both eyes automatically. With the new features, the RC-5000 will surely make your office more efficient.

Automatic Measurement
Use power asst. joystick for rough alignment.
Touch the center of the pupil on the display with your fingertip and the RC-5000 will automatically align and begin measurements.
Press the R/L Icon on the display and the instrument will automatically move to and measure the other eye.
Printing is automatic

Power Joystick
Move the joystick ring up/down and the instrument head moves up/down quickly.
Move the joystick hand rest to the right/left or backward/forward and the instrument head moves to the right/left or backward/forward quickly.
Rotate the joystick ring and the instrument head moves up/down slowly.
Tilt the joystick and the instrument head moves in each direction slowly.

Power Chinrest

The chin rest can be moved by pushing the buttons on the front panel. No need to reach out to the chin rest for manual adjustments.

Refractometry
Normal Mode: Fogging is applied automatically for each measurement for more accurate results.
Quick Mode: Fogging is applied as needed for consecutive measurements.
IOL/CAT Mode: This mode is used to measure cataract or pseudophakic eyes.

Keratometry
Short consecutive measurements and time provide reliable data.
Measurements at ø 6.0mm (R = 8.0mm) as well as at ø 3.0mm give you enough information for contact lens fitting.
Base curves of contact lenses are stored, categorized and suggested manufacturers are automatically printed.

Diameter Measurement of Cornea and Pupil
Measurement can be done easily by moving the two cursors on the display to the boundary of Cornea or Pupil.
This is useful for deciding the diameter of a contact lens and for other contact lens fitting practices.

Other Features

Various settings like changing modes can be done on the touch panel display.
The wide viewed fixation target assures natural fixation to avoid accommodation of a patient’s eye
The quick thermal printer has shortened the total measurement time.
